R2AT / 2SN – By The Foot

$1.92 – $5.58

Pick your length (ft)
Order total:
Hose Construction: Black color, Synthetic rubber resistant to abrasion and weather, oil and ozone. High Pressure Hydraulic Lines 50 to 415 bar. For use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Earthmoving and Material handling equipment. Temperature Range: Continuous: -40°C to 100°C,  Intermittent: 120°C Impulse Cycles: 200,000; tested upto 400,000 cycles upto 1″ I.D

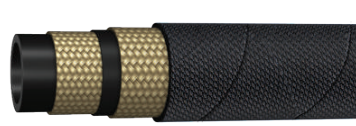

Hose Construction:

Black color, Synthetic rubber resistant to abrasion and weather, oil and ozone. High Pressure Hydraulic Lines 50 to 415 bar. For use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Earthmoving and Material handling equipment.

Temperature Range: Continuous: -40°C to 100°C,  Intermittent: 120°C

Impulse Cycles: 200,000; tested upto 400,000 cycles upto 1″ I.D

ID (in)

1/4, 3/8, 1/2, 5/8, 3/4, 1
OD (in)

0.58, 0.74, 0.86, 0.98, 1.14, 1.48
WP (psi)

5800, 4785, 3990, 3625, 3120, 2395
BP (psi)

23200, 19140, 15950, 14500, 12470, 9570
Bend Radius (in)

3.9, 4.9, 7.1, 7.9, 9.4, 11.8
Weight (kg/m)

0.386, 0.590, 0.679, 0.825, 1.009, 1.457
