Fire Suppression Hose Reel

$1,277.50 – $1,512.50

Choose Number of Reels
Order total:
Construction: Inner tube:  Black color, Synthetic rubber resistant to oil and water Reinforcement:  Single steel wire braid Cover:  Red color, Synthetic rubber resistant to oil, weather & flame resistance    MSHA 2G Application:  This hose is intended specifically for fire suppression systems in mining & forestry Temperature Range: Continuous:  -40°C to 100°C    Intermittent: 120°C

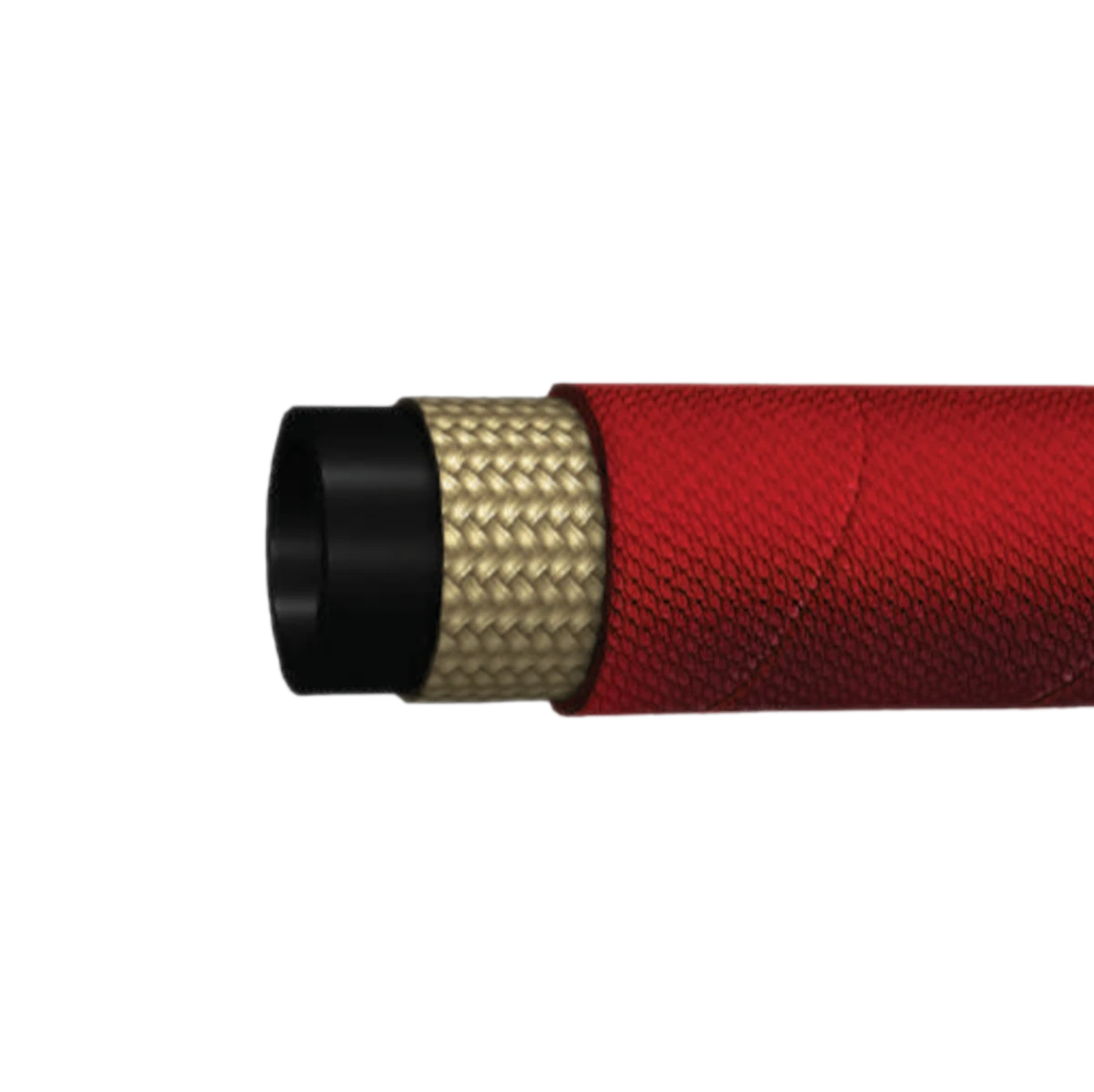

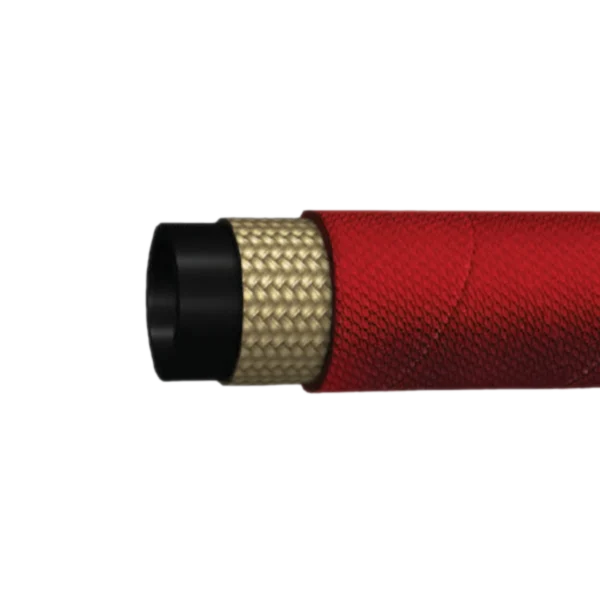

Construction:

Inner tube:  Black color, Synthetic rubber resistant to oil and water

Reinforcement:  Single steel wire braid

Cover:  Red color, Synthetic rubber resistant to oil, weather & flame resistance    MSHA 2G

Application:  This hose is intended specifically for fire suppression systems in mining & forestry

Temperature Range: Continuous:  -40°C to 100°C    Intermittent: 120°C

Inner Diameter (in)

1/4, 1/2, 3/4
Outer Diameter (in)

0.52, 0.80, 1.07
Working Pressure (psi)

3265, 2320, 1525
Burst Pressure (psi)

13050, 9280, 6090
Bend Radius (in)

3.9, 7.1, 9.4
Weight (kg/m)

0.283, 0.450, 0.700
